Integartion Muse de Luxe in Home assistant : Muse de Luxe access to HAss internet adress to read local media 1/3

RASPIAUDIO
1

Good evening,

I have installed ESP Muse de Luxe and integrated it with Home Assistant last version.
I can read local MP3 or Web Radio on my Muse de luxe from HomeAssistant scripts.

I have 3 issues with that integration ; I will describe my 3 issues in separate issues.

  • I am using duckdns for HASS internet access (=> https url for my HAss) + double authentification. ; I am not able to set a local adress to HA => Muse de luxe call the internet adress (duck dns) to read local mp3
  • In the log console I see that the connection to my WIFI does not success the first time but after 2 or 3 attepmts
  • If I activate regularely the Muse de Luxe, I have no blocking of Muse de Luxe. But after a nigth the muse de luxe is not awakable even if I switch it off and on. I need to connect using https://raspiaudio.github.io/ to reset it.

First issue description :

  • I am using duckdns for the internet access to HA and double authentification using 2Fas Auth. My external adress is “https://mondomaine.duckdns.org” redirected to internal Raspberry pi 4 at 192.168.X.Y:8213.
  • I am installing Muse luxe ESP32 HP integrated with Home assistant.
    To read local mp3 media I can only do it through internet HA adress.
  • I have tried to change the local HA adress to https://192.168.X.Y:8213 or http://192.168.X.Y:8213 (parametres->Systeme->Reseau->URL local address) but HA gives me error message : “You have configured an HTTPS certificat in HASS. You have to define an local URL covered by that certificate”.

What Can I do ?

Is that the rigth place to log that issue ?

Thanks

Regards

2

This is not the right place - best to read a tutorial on external access / visit the HA forum.

Would recommend to run an nginx proxyserver (npm addon for example); run ha local only (8213). NPM then acts as the man in the middle for external access (and allow installation of certificates/encrypted communication). All your internal communication is then unencrypted.

There are plenty of guides available, either on youtube or on the forum.

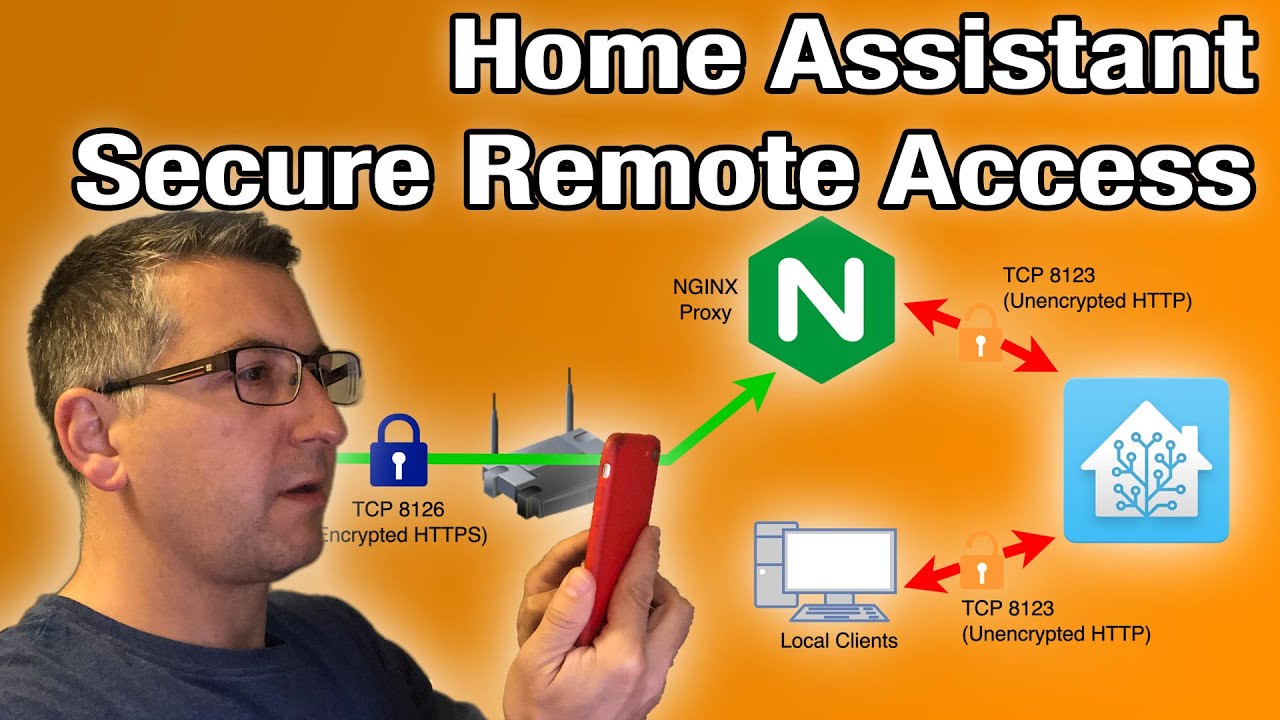

Below an example (i did not view this one myself):
