Pi Audio Drive - INSTALLATION GUIDE

Installation guides
1

Image1247×672 80.6 KB

This is the installation guide for the Pi Audio Drive. You can find the product page here.

Step 1: Physical Installation - Connecting Your Drive

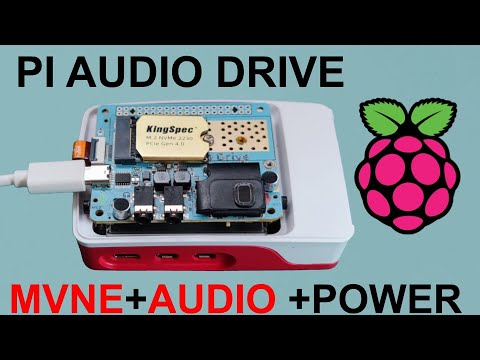

Please follow the video tutorial for detailed instructions:

The important part is to connect the cable as shown below:

Cable Connection
Cable Connection839×790 47 KB

Step 2: Using Your Drive as a Primary Drive

Here is the video tutorial for this step:

In a nutshell:

  1. Install the Pi OS on an SD card using the Raspberry Pi Imager.

  2. Open a terminal and type:

    lsblk

    You should see your NVMe drive listed.

  3. Use the Raspberry Pi Imager to burn the Pi OS onto your NVMe drive.

  4. In a terminal on your Raspberry Pi, run:

    sudo raspi-config

    Under Advanced Options > Boot Order, choose NVMe/USB boot. Also, select PCIe speed - GEN3. T

  5. Reboot, go thru the install process and enjoy your super fast Pi OS!

In the video the command for benchmarking is:

sudo curl https://raw.githubusercontent.com/TheRemote/PiBenchmarks/master/Storage.sh | sudo bash

Then check compatible NVME drives here tested this way target some hardrives with score in the 50000 range: Solid State Drives (SSD) - Page #1 - pibenchmarks.com

I have sucessfully tested those drives :
KingSpec 512GB M.2 2230 PCIe Gen4x4 NVMe
Patriot P300 M.2 PCIe Gen 3 x4
KingSpec 2230 SSD 512GB
Lexar 1TB NM790 SSD PCIe Gen4
Note that some manufacturers change sometime internal componenent of drives while keeping the same part number, so there is still a slight incompatibility probability, order at a place where you can send it back if it does not work.

Step 3: Using the Audio

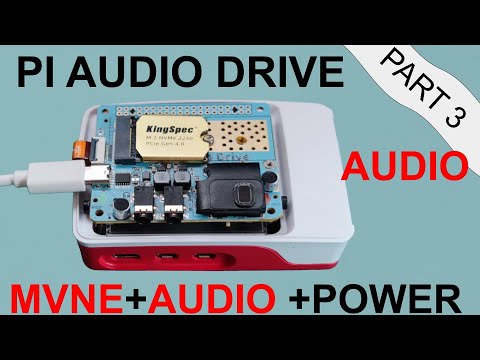

Check the video :

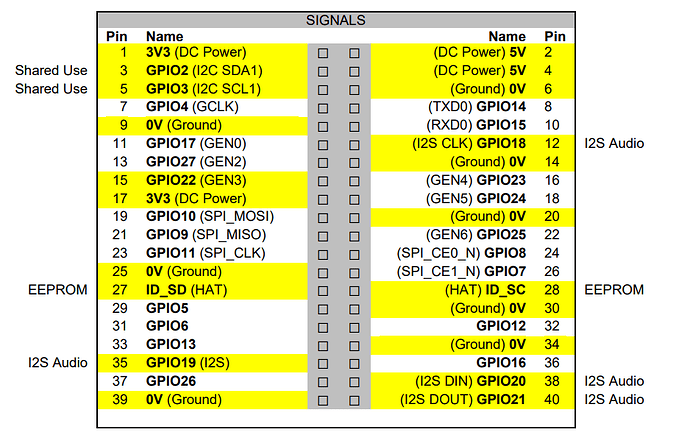

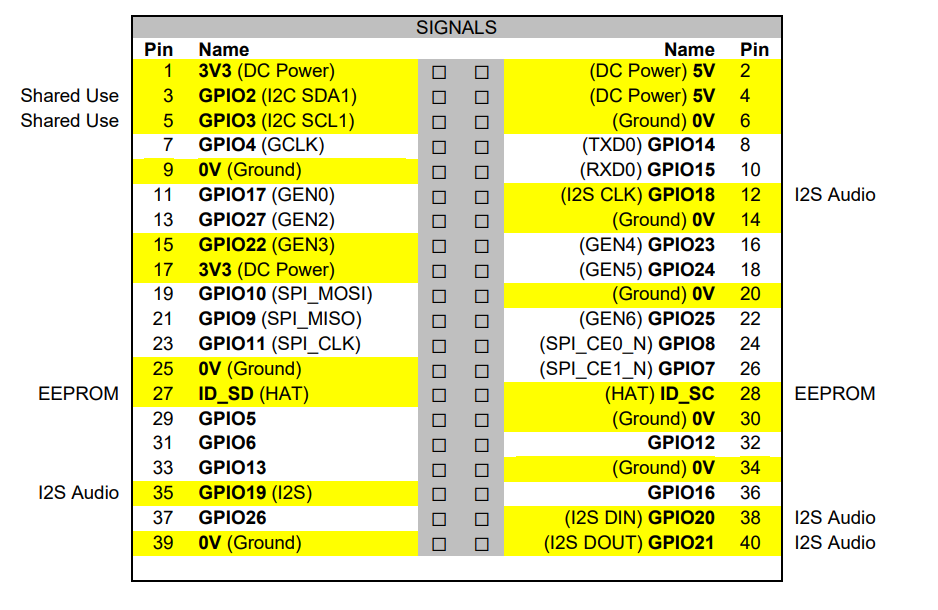

The good news is that you don’t need to load any complex drivers as the EEPROM is auto configuring it. On your desktop on the top right corner you should see a speaker and a microphone :slight_smile:

Then you an use our predefined settings to set the correct volume to the On-board Speaker, or in the headphone

git clone https://github.com/RASPIAUDIO/Pi-Audio-Drive
cd Pi-Audio-Drive
sudo alsactl restore -f MIC_HP_SPK

Then you can test the audio using this command

speaker-test -l5 -c2 -t wav

list recording device
cho “Available recording devices:”

arecord -l

recording :

arecord -D hw:2,0 -d 4 -r 48000 -c 2 -f S16_LE record_stereo_mic.wav

Playing :

aplay record_stereo_mic.wav

Store your Alsa configuration :

sudo alsactl store -f myAlsaConfig

run automatically this at startup if you want
