8xOUT / 8xIN OUTcard GPIO Usage?

[pike]

Before I know if I can make use of the ’ 8xOUT / 8xIN OUT’ card I must know which GPIO pins it uses and which ones it leaves free. As much details as possible.

Please supply this information!

I tried to use the ‘Contact Us’ option but I did not get a reply from there.
I can’t believe I had to create a forum account just to ask this question…

[pike]

One week has now passed and no replies yet. Does this company not know which GPIO pins are used on a Rpi?

Do you understand that this information is quite important if you want to create a serious project with eg. CamillaDSP?

Regards

[Raspiaudio]

sorry yes we will publish it this week

[keybumps]

Hi!

Where can we find the published info about GPIO pin usage! Love the 8xin 8xout Hat and would love to add an active PWM fan to my setup to cool everything. So I need to know which GPIO pins remain free for us to use

[Raspiaudio]

Hi the pinout has been added in the install guide

8xOUT / 8xIN OUT for Raspberry Pi5 Installation guide

This is the user guide for 8xOUT for Raspberry Pi 5 This DAC offers 8 channels of high-quality analog audio output (4 stereo pairs) via four TI PCM5102A DACs. This innovation is ONLY possible with the Raspberry Pi 5. Insert the 8xOUT into your RPi 5 like this: [1747149747992_nobg (1)] To use it with the official case, first insert the riser: [image] Then assemble it in the official case [image] Automatic installation (tested on Raspberry Pi OS) Update to the…

[pike]

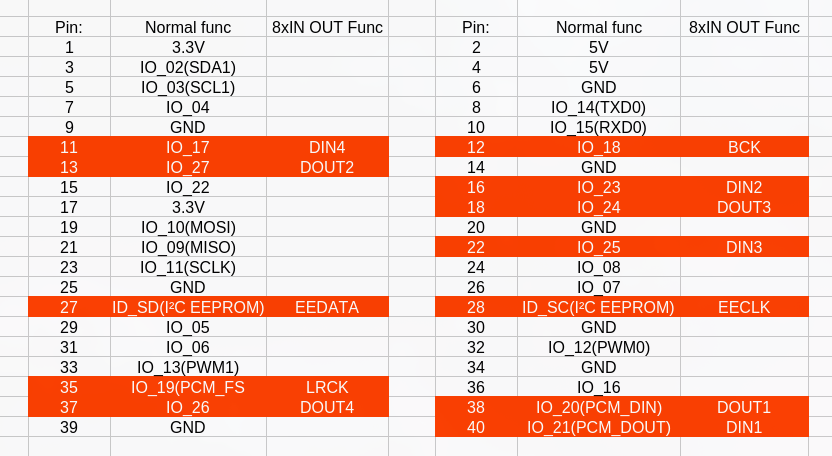

Thanks for the Pinout! I found it difficult to get a quick understanding which Pins are free to use, so I made this “guide”: Enjoy
